188275-6
Manufacturer:
TE Connectivity
Mfr.Part #:
188275-6
Datasheet:
Description:

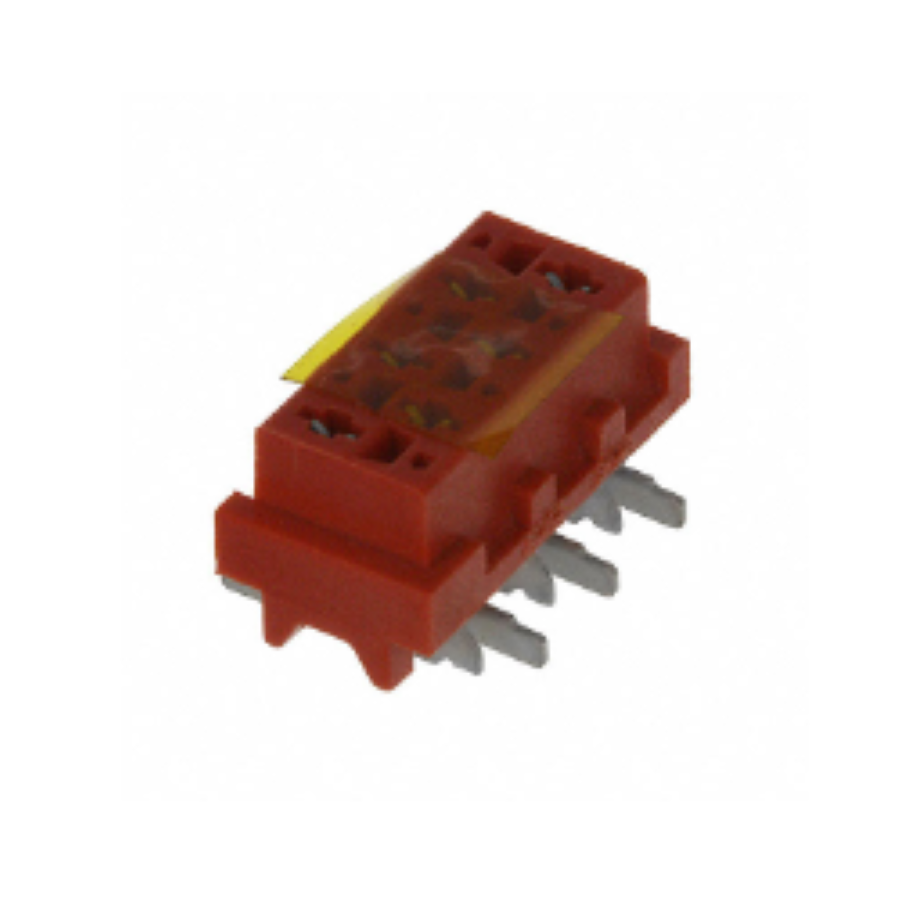

Headers and Wire Housings SMD/SMT Connector, Receptacle Number of Positions:6 Pitch:1.27 mm
| Parameter | Value |
|---|---|
| Length | 9.7 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Height | 5.334 mm |
| Packaging | Reel |
| Voltage Rating | 230 V |
| Depth | 5 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 1.27 mm |
| Current Rating | 1.5 A |
| Max Voltage Rating (DC) | 100 V |
| Flammability Rating | UL94 V-0 |
| Orientation | Vertical |
| Operating Supply Voltage | 100 V |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Red |
| Gender | Receptacle |
| Number of Contacts | 6 |
| ELV | Compliant |
| Connector Type | Connector, Receptacle |
| Contact Type | Forked |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Row Spacing | 1.5 mm |
| Housing Material | Polyamide |
| Max Voltage Rating (AC) | 100 V |
| Contact Current Rating | 1 A |
| Housing Color | Red |
| PCB Mounting Orientation | Vertical |
| Contact Gender | Female |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Mating Connector Lock | Without |
| PCB Mount Retention | Without |
| Mounting Angle |
Stock: 1595
Distributors
pcbx
pcbxUnit Price$0.82586
Ext.Price$0.82586
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.82586 | $0.82586 |
| 10 | $0.71985 | $7.19850 |
| 25 | $0.71301 | $17.82525 |
| 50 | $0.66616 | $33.30800 |
| 100 | $0.62239 | $62.23900 |
| 300 | $0.61334 | $184.00200 |
| 500 | $0.60443 | $302.21500 |
| 1000 | $0.51467 | $514.67000 |
